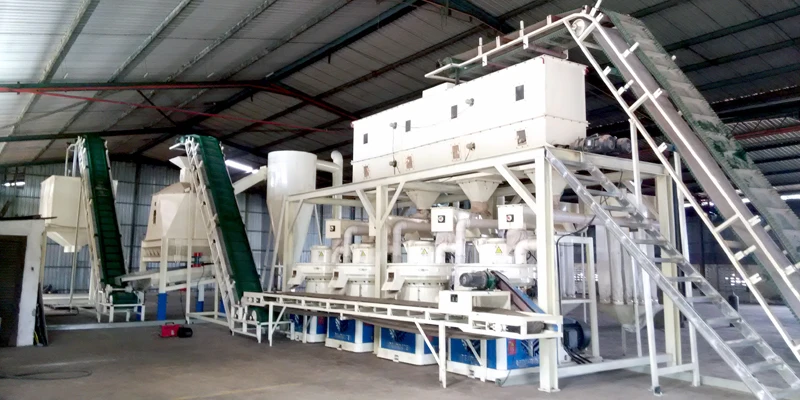

Line Biomass Fuel Making Machine Complete Wood Pellet Production

Name: Line Biomass Fuel Making Machine Complete Wood Pellet Production
SKU: 1005010501829754
Availability: InStock

Category: Uncategorized SKU: 1005010501829754

393.080,21 د.إ

Rated 0 out of 5

0 reviews

10 in stock

Description

biomass fuel making machine

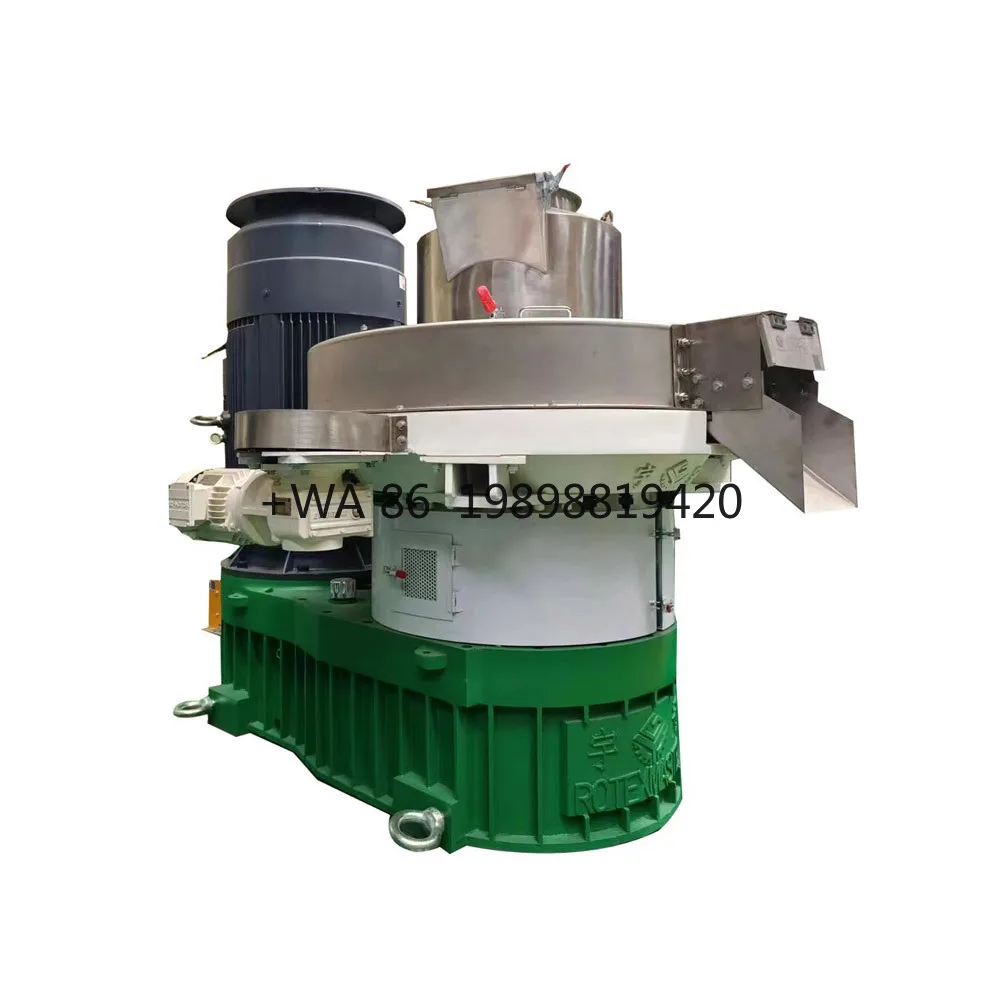

The new generation vertical wood pellet machine(also wood pellet mill) is the latest pellet machinery in China. The biomass wood pellet machine adopts a large modulus hard toothed helical gearbox, strengthened spindle, strong power output, equipment stable operation, low failure rate, low production cost. biomass fuel making machine suitable for: eucalyptus, pine, birch, poplar, fruit, crop straw, bamboo chips, rice husk, waste wood plate, etc The finished pellets is biomass energy as biofuel, which can replace coal, oil, gas, etc., widely used in power plant, boiler, and heating system.

Specification

Model	Main Power(kw)	Capacity(t/h)	Dimension(LWH)	Weight(t)
YGKJ560	132	1.5-2	220013001600	5.8
YGKJ700	160	2-3	240014001800	7.8
YGKJ880	220	3-4	300015002200	13

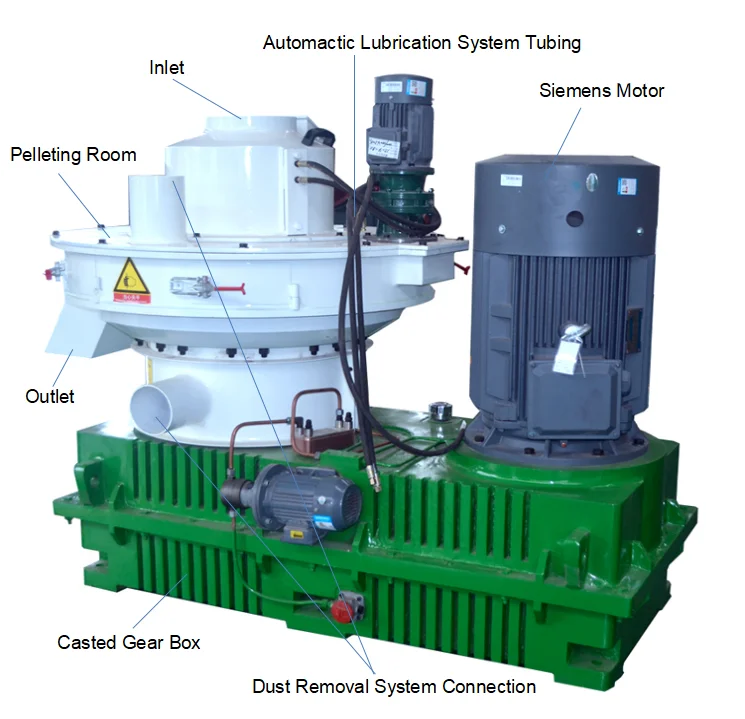

Details Images

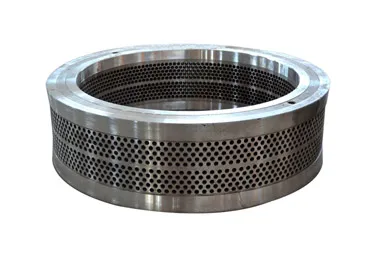

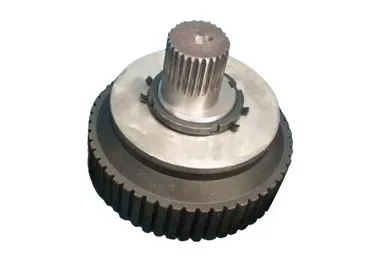

Stainless Steel Mould

Stainless steel whole carburizing die,high wear resistance, good stability,discharge area increase,enhance capacity and reduce cost.Double layer, both side can be used, reduce cost.

Roller

the roller adopts wear-resistant alloy welding process, without lock nut structure design, less grease consumption, which greatly extends the bearing life, then reducing cost.

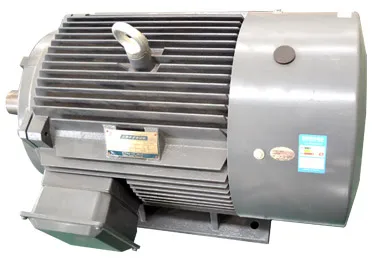

Siemens Motor

The motor of wood pellet machine is frequency, with thick copper coil, It won’t be burned due to instantaneous current.

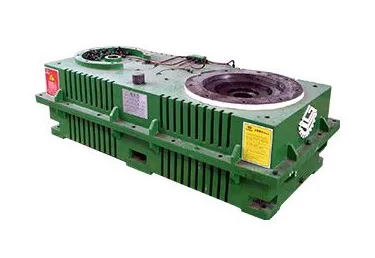

Reducer

Reducer drive of biomass fuel making machine strengthen with 3 level.,module increased , gear strengths increased, carrying more and more ability.The service life increased 8-10 times than the traditional reducer,greatly increase the service life.

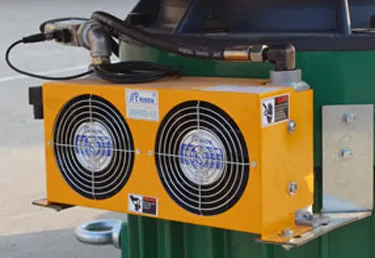

Air Cooling System

Adopt air cooling, circulation cooling, cooling gear oil inside the gear box

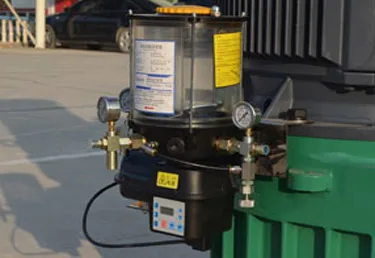

Automatic oiling system

Reducer and main shaft bearing chamber adopts loop closed industrial gear oil lubrication,make lubrication effect more outstanding,reduce the cost of traditional grease lubrication, add a circulating waste cooling oil temperature cooling device, reduce the oil temperature in reducer, protect bearings.

Raw Material and Application

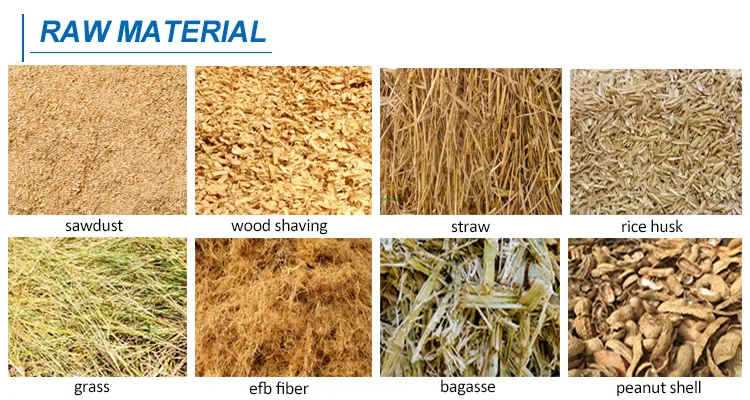

What kind of raw materials can be used to make biomass pellets?

There are many different raw materials can be used in the biomass wood pellet production line, for example wood log, wood chips, wood sawdust, rice hush, straw, palm shell, EFB, wet or dry grass, alfalfa, hemp, tire fiber, organic fertilizer, waste paper, and so on.

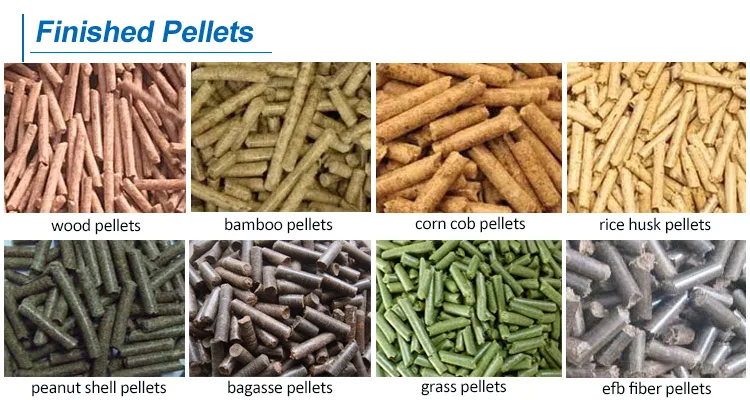

Application of wood pellets

Applications: Make Biomass Pellets,Biomass Industry,Burning,Making Wood Fuel et

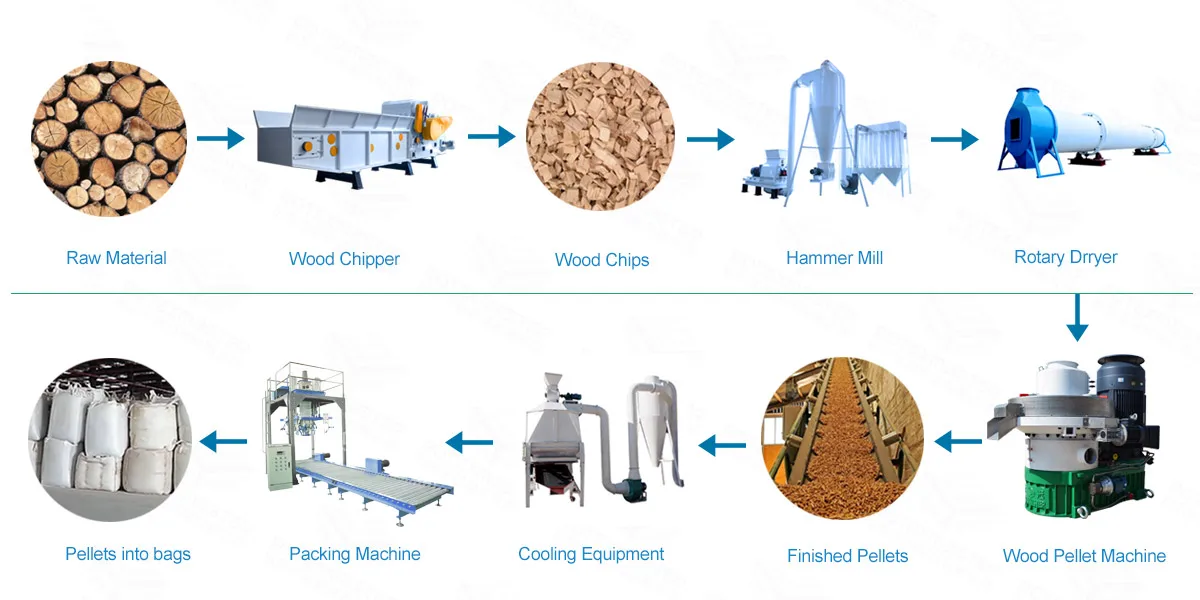

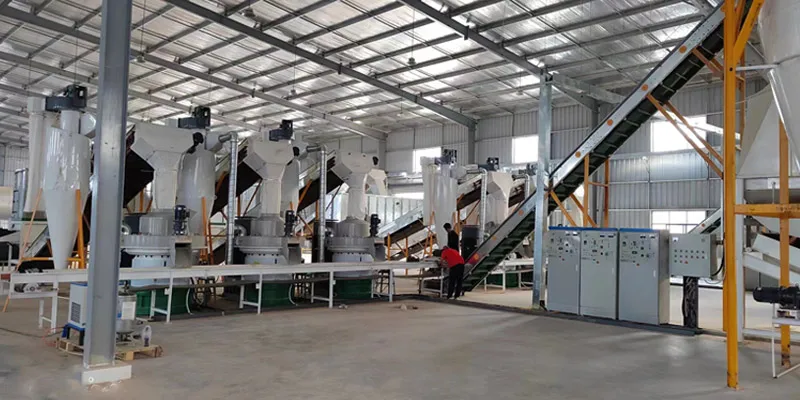

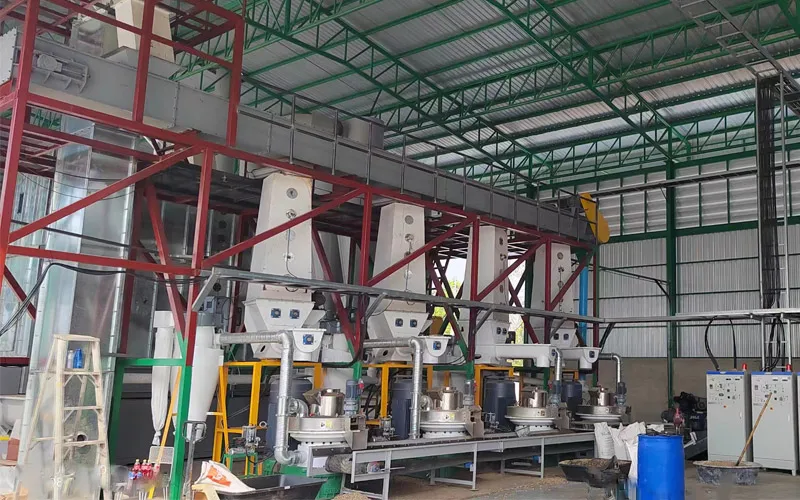

Main Process to Press Wood Pellets

Different material need different machine. Take wood log as a example,the whole process include:
Durm wood chipper-To make wood log into small size wood chips.
Hammer mill/Crusher-To make wood chips into sawdust
Dryer-To dry the higg moisture content of sawdust into 12-15%
